Conveying Elements
Precision Conveying Screw Elements for Twin Screw Extruders
Anshika Plastic Machinery is an established manufacturer, supplier, and exporter of high-precision conveying screw elements for co-rotating and counter-rotating twin screw extrusion systems. Operating from our manufacturing hub in Ahmedabad, Gujarat, we engineer premium modular screw components that optimize material transit, handle volatile feed streams, and maintain clean processing environments.
Our heavy-duty conveying components deliver continuous axial thrust, overcoming barrel flow resistance to guarantee uniform melt delivery across global masterbatch compounding, technical resin processing, and high-fill plastic recycling lines.
High-Efficiency Material Transportation
At Anshika Plastic Machinery, our conveying screw elements are strategically modeled with advanced helical pitches to generate uniform material movement through the extruder barrel. By ensuring a highly stable axial thrust, these elements seamlessly move un-melted solids, dense powders, and molten polymers forward while maintaining uniform thermal conditions. The specialized flight profiles control the material residence time distribution precisely, preventing premature overheating or polymer stagnation.
Self-Cleaning Geometry & Wear Resistance
Our twin screw conveying elements utilize tight-tolerance intermeshing configurations that generate an exceptional self-wiping effect within the barrel. This continuous scraping action eliminates dead zones and stops material degradation. Forged from premium-grade tool steel alloys and treated with wear-resistant finishes, they withstand severe friction and corrosive additive packages over extended campaigns.
Advanced Processing & Metallurgical Advantages
Discover the engineering benchmarks that make our modular conveying components highly reliable for continuous industrial compounding.
Advanced CNC Manufacturing
Every element is shaped using multi-axis CNC machining and precision CNC grinding to ensure flawless dimensional repeatability.
100% Spline Plug Verification
Internal drive splines undergo comprehensive plug-gauge testing to guarantee smooth interchangeability on original shafts.
Rigorous Metallographic Analysis
Raw materials undergo structural testing and alloy validation to ensure zero micro-cracks and flawless component strength.
Tailored Reverse Engineering
Our engineering team provides dedicated technical support for on-site surveying, mapping, and optimized screw profile design.
Complete Heat Traceability
Strict quality assurance protocols monitor every batch from raw ingot to final grind, meeting international structural standards.
Optimized Flight Kinetics
Engineered to maximize positive forward volumetric displacement while reducing energy draw and localized material stress.
Conveying Screw Element Specifications
Review the comprehensive geometric ranges and material baselines engineered for modern modular compounding machinery.
| Engineering Parameter | Anshika Manufacturing Standards |
|---|---|
| Screw Element Diameter Range | Φ20 mm to Φ300 mm (Custom sizes available on request) |
| Material Metallurgy Options | High-Vanadium Tool Alloys, Nitrided Steel, Wear & Corrosion-Resistant Powder Metallurgy |
| Machining Processes | Ultra-Precision CNC Machining & Automated Micro-Finish CNC Grinding |
| Surface Hardness Profile | Vacuum heat-treated and case-hardened for maximum abrasive resistance |
| Industry Compatibility | Plastic Compounding, Color Masterbatch, Chemical Processing, Food & Pharma Extruders |
Our Modular Conveying Screw Element Portfolio
Explore our diverse range of precision-ground conveying segments. Each configuration is engineered to optimize material transport, handle extreme thermal fields, and ensure reliable processing stability.

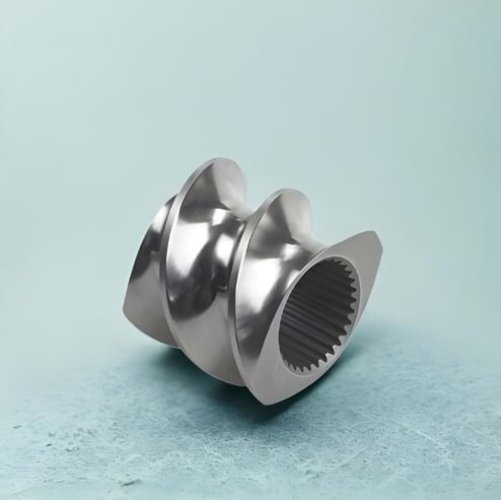

Screw Conveying Element for Twin Screw Extruders
A vital mechanical segment designed to manage smooth, steady material transport along the extruder barrel. Featuring precision-crafted helical flights, this element maintains constant forward compression and eliminates flow stagnation. Forged from high-grade alloy steel to resist extreme wear and thermal loads.
Contact Us

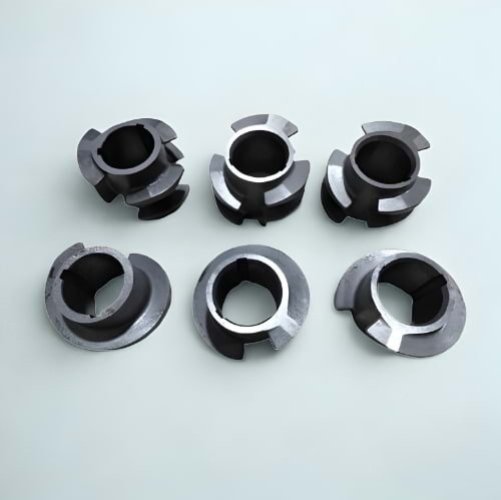

PCS70 Conveying Screw Element
This 70 mm diameter precision extrusion component is engineered to deliver high-capacity material transit in medium-scale twin screw systems. It optimizes forward pressure generation and material distribution. Built using hardened structural alloys to perform reliably in demanding compounding shifts.
Contact Us

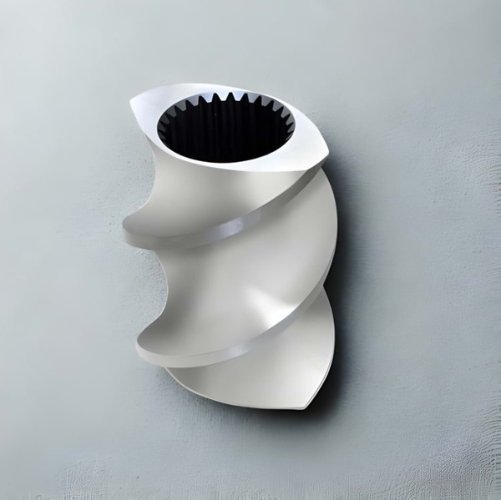

Mixing and Conveying Screw Elements
A dual-action modular layout where conveying zones build stable head-pressure while specialized mixing profiles optimize filler dispersion and material melting. This configuration balances material transport with melting efficiency, ensuring uniform compounding quality across polymer and chemical lines.
Contact Us

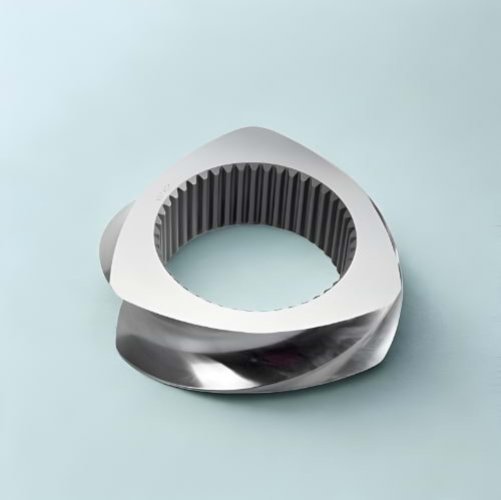

Twin Screw Extruder Conveying Element
Engineered for modular flexibility, this element regulates material residence time while providing consistent volumetric output. Its precise outer geometry guarantees complete self-wiping capability, allowing quick color or material transitions with minimal scrap generation.
Contact Us

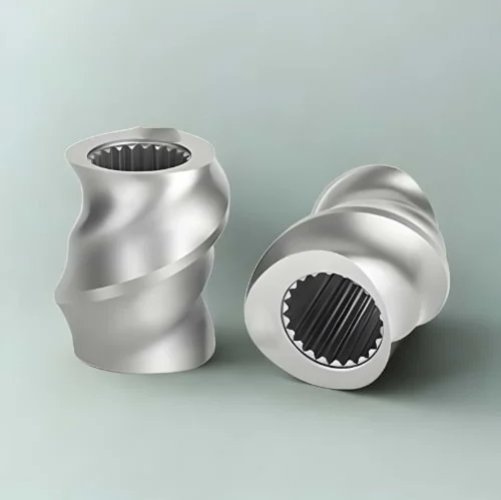

Single-Flight Conveying Screw Elements
Featuring a single, continuous helical flight path, this element delivers smooth, low-shear material transport. It is ideal for feeding zones, venting regions, and processing shear-sensitive polymers, where steady volumetric flow and gentle material handling are essential.
Contact Us

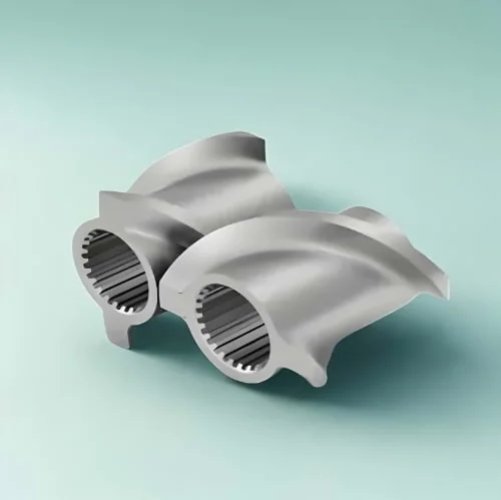

SKK Conveying Elements
An advanced two-lobed screw segment featuring an extended pitch layout designed to maximize free volumetric carrying space. Engineered to transport low-bulk-density powders, fluffy materials, and high-volume feeds, it ensures reliable intake capacities and stable process flow.
